Customer-Specific Drive For A Sorption Dryer

Nozag’s modular system - Shopping paradise for drive requirements for engineers Once again, Nozag’s modular system for the drive technology has proven its advantages. EBT swiss engineering AG specifically selected individual components that were correctly designed and met the environmental conditions - all in line with its proprietary BOS Sorption development for dehumidifying the process air in the food processing industry or other industries.

Any Questions?

Do you have any questions about one of our products or applications?

Fill in the form below - we will process your request as soon as possible.

For security reasons, messages containing links are automatically deleted.

When you contact us, we process your personal data. You can find more information on data protection in our data protection declaration.

Please call us

Call us

The Nozag team is at your disposal on +41 44 805 17 17.

Products search

Search of articles of the Standard Program



Catalog Standard Program
Catalog Standard Drives / System

Nozag general brochure
Shop

The Challenge / The Situation

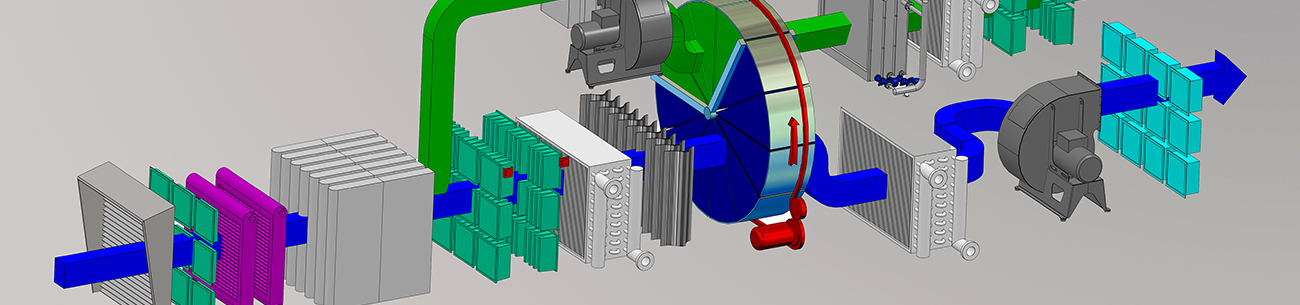

The company EBT Swiss Engineering AG based in Neuhaus (Switzerland) produces air treatment devices for production facilities and spray dryers for the food processing, pharmaceutical and chemical industries. In order to meet the highest hygiene standards, these devices are designed and manufactured according to customer specifications. All components, including various filter stages, own-produced heat exchangers, silencers, fans and rotors for air drying, are mounted in stainless steel housings and delivered worldwide. These devices are key components, in particular for the spray drying of up to 5 million liters of milk daily. All elements used must withstand continuous 24/7 operation over several years. For the development of the “BOS-Sorption” air dryer, EBT designed on its own a drive for its high-efficiency sorption rotors. This rotor drive had to meet the following requirements:

  • Standard products, all from stock or from the modular system
  • Suitable for food environments and high air humidity
  • Slow, jerk-free movement
  • Scalable solution for various facility sizes
  • Ready-to-mount supply by Nozag



The Solution
EBT swiss engineering AG’s engineers brought extensive knowledge of drive technology and recognized the great benefits of Nozag’s modular system. This allowed the targeted selection of single components, which were tailored individually to the desired functions. The requirements for smooth and low-maintenance operation were met thanks to the CHT 63B4 worm gear including a 0.18kW motor and Delta® HR Titanium roller chains. Once again, the high flexibility of Nozag’s modular system has been demonstrated.

  • Standard single components such as roller chains, chain sprockets and chain tensioners, and geared motors including a worm gear
  • The chain sprockets are machined ready for installation
  • Worm gears offer smooth drive movements and require very little maintenance


«The modular system is perfect for us engineers. It offers high design flexibility and also meets the demands from the production environment, such as for example in the food processing industry.»


Rolf Bosshart, B.SC. Mechanical engineer, Sales Manager/co-owner, EBT swiss engineering AG, Neuhaus





Products / Detailed information
Thanks to its wide products range, Nozag’s modular system is very helpful to solve specific individual situations. We are also able to supply larger quantities from stock and to machine standard products ready for installation. Come and have a look or allow us to advise you for the optimization of drive solutions.

Customer-specific drive for a sorption dryer

More information on the used products


Roller Chains
Sprockets
Tailor made
Worm gears
