Push of a button instead of muscle power for container loading, thanks to the compact "ALL-IN" drive unit.

Challenge / Situation
Conveyor belts for luggage, parcels and other goods are part of everyday life in logistics or air traffic. These conveyor belts are mainly operated manually. This means that muscle power is required to bring the conveyor belt into the correct position and to fill the container. Several times per day and week, which results in maximum performance for the employees, not to mention the risk of injury.

• Manual control of Conveyor belts
• Conveyor belt adjustment requires a lot of muscle power
• Work is not reasonable for ervery employees
• High risk of injury through manual intervention

resolution / The way forward g

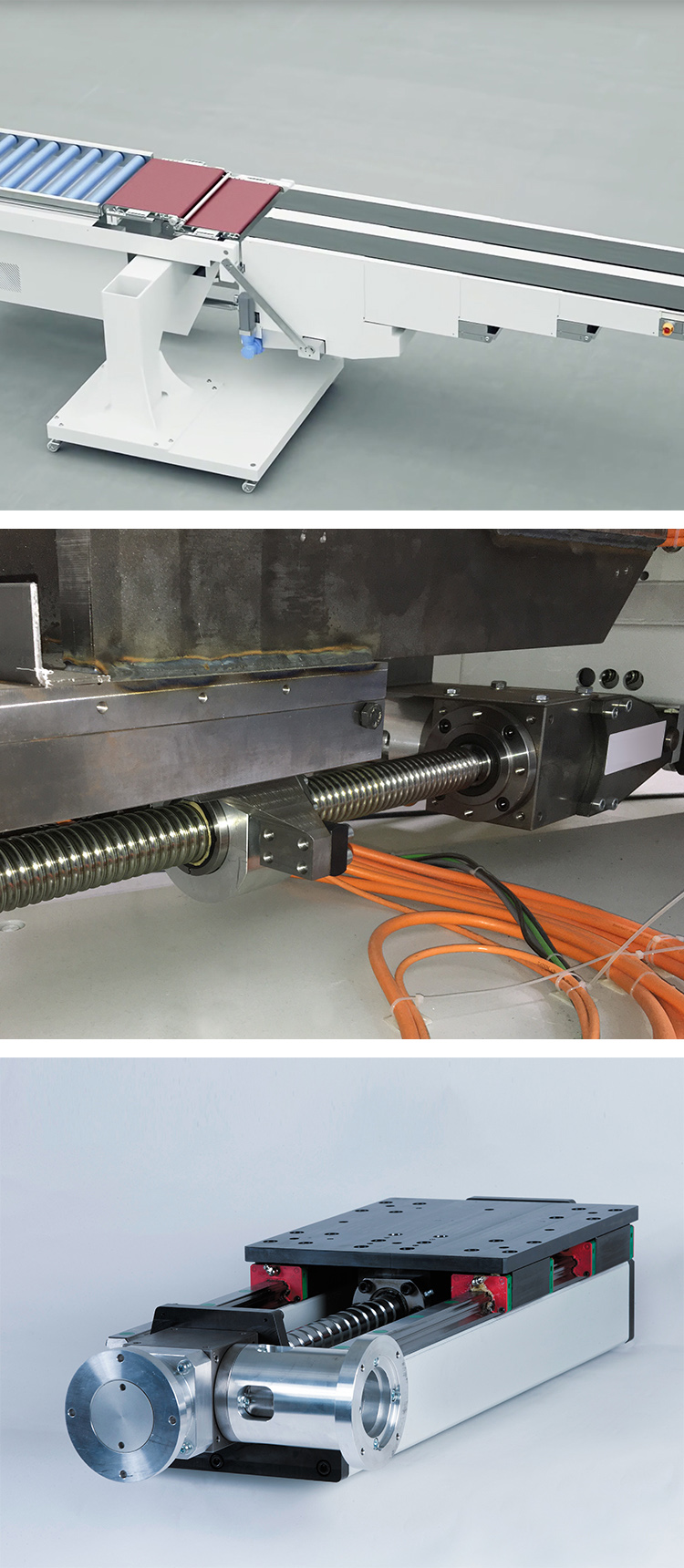

A classic situation for creating a drive solution with various individual components. Thanks to Nozag engineering in collaboration with a sales partner, a unit was developed to combine lifting and/or pushing movements whose speed range can be designed variably. This "ALL-IN" unit includes a ball screw, a bevel gear with axial bearing and a motor adapter with coupling, thus it meets most of the requirements. It also applies to the conveyor belt for loading baggage into containers. This therefore moves effortlessly from container to container at the push of a button. The impulse from the control unit is triggered by the drive unit and now this work can be expected of every employee.

• Effortless positioning of the conveyor belt
• Pushing a button instead of necessary muscle strength
• Compact design as installation unit
• Cost-effective and economical solution
• Simple mounting and alignment

Product / Details

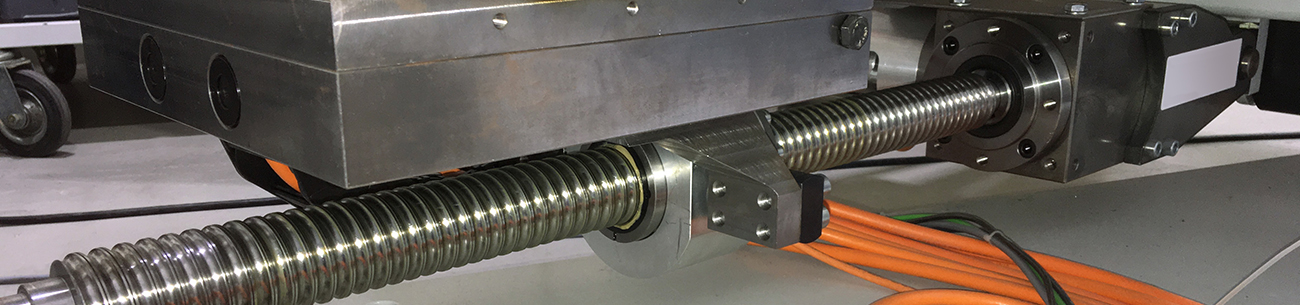

The "ALL-IN" ball screw unit combines ball screw, bevel gear boxes with axial bearing, motor adapter and motor coupling and is available in five load sizes (2.5 to 50kN) with a standard life cicle of 10,000km. We are at any time at your disposal for engineering, calculation and optimization of drive solutions.
